Using the Pinch-Off Models

1
from dotenv import load_dotenv
2
import os
3
from conductorquantum import ConductorQuantum
4
5
# Load API key from .env file
6
load_dotenv()
7
TOKEN = os.getenv("CONDUCTOR_API_KEY")
8
9
# Initialize client
10
client = ConductorQuantum(token=TOKEN)

1
from conductorquantum import ConductorQuantum
2
3
# Initialize client with API key
4
client = ConductorQuantum(token="YOUR_API_KEY")

1
from dotenv import load_dotenv
2
import os
3
import numpy as np
4
from conductorquantum import ConductorQuantum
5
6
7
# Load API key from .env file
8
load_dotenv()
9
TOKEN = os.getenv("CONDUCTOR_API_KEY")
10
11
# Initialize client
12
client = ConductorQuantum(token=TOKEN)
13
14
# Load Pinch-off data (current measurement)
15
data = np.load("pinch-off-classifier-v0.npy")  # shape (n, )
16
17
# Detect Pinch-off
18
result = client.models.execute(
19
    model="pinch-off-classifier-v0",
20
    data=data
21
)
22
23
# Access the classification result
24
is_pinch_off = result.output["classification"]
25
print(f"Is pinch-off: {is_pinch_off}")

1
Is pinch-off: True

1
from dotenv import load_dotenv
2
import os
3
import numpy as np
4
from conductorquantum import ConductorQuantum
5
6
7
# Load API key from .env file
8
load_dotenv()
9
TOKEN = os.getenv("CONDUCTOR_API_KEY")
10
11
# Initialize client
12
client = ConductorQuantum(token=TOKEN)
13
14
# Load Pinch-off data (current measurement)
15
data = np.load("pinch-off-parameter-extractor-v0.npy")  # shape (n, )
16
17
# Detect Pinch-off
18
result = client.models.execute(
19
    model="pinch-off-parameter-extractor-v0",
20
    data=data
21
)
22
23
# Access the peak locations (indices)
24
pinch_off_parameters = result.output
25
print(f"Pinch-off parameters: {pinch_off_parameters}")

1
Pinch-off parameters: {'cut_off_index': 31, 'transition_index': 43, 'saturation_index': 54}

1

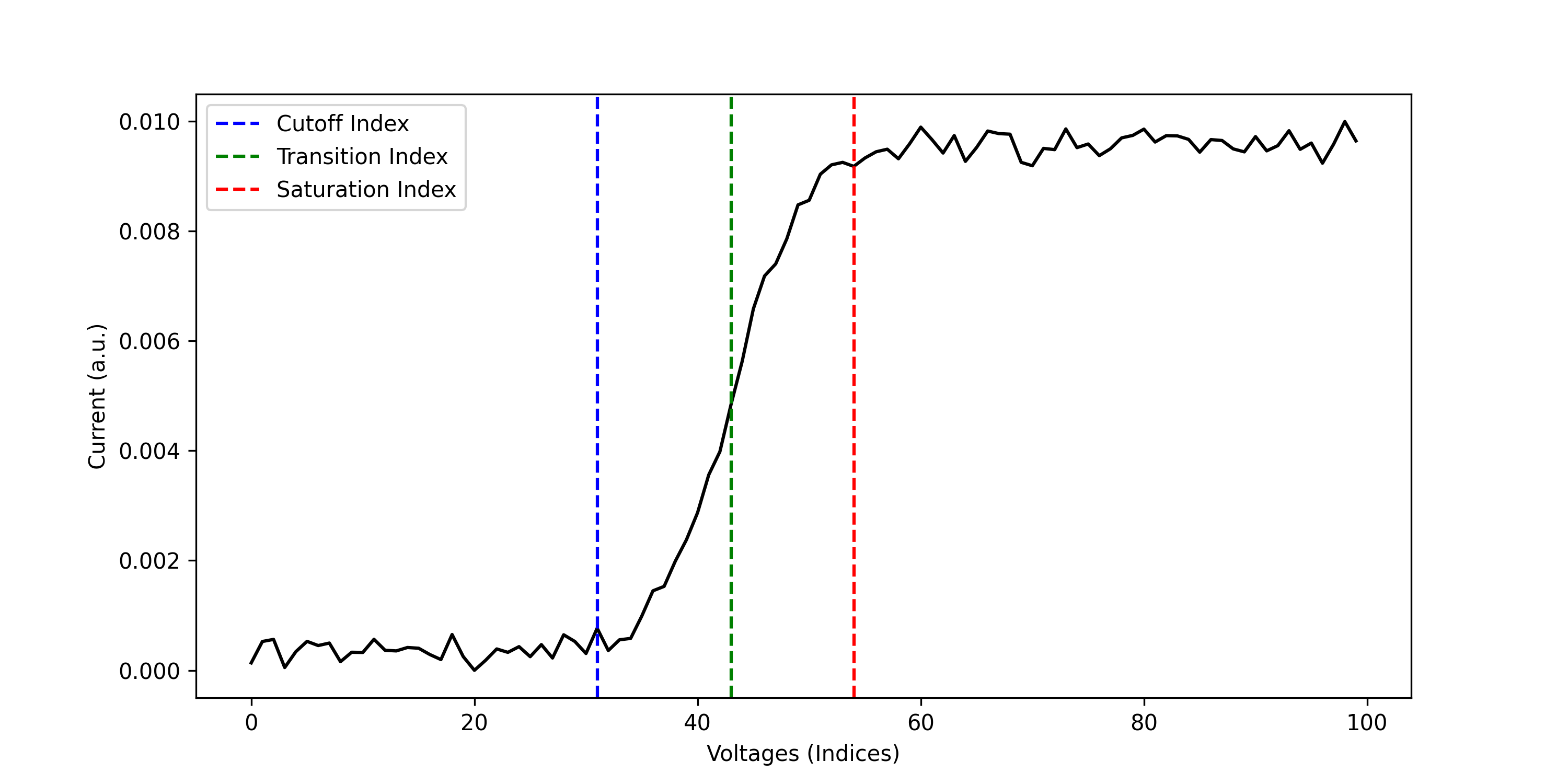

import matplotlib.pyplot as plt
2
3
plt.figure(figsize=(10, 5), dpi=300)
4
plt.plot(data, 'k-')
5
plt.axvline(x=result.output["cut_off_index"], color='b', linestyle='--', label='Cutoff Index')
6
plt.axvline(x=result.output["transition_index"], color='g', linestyle='--', label='Transition Index')
7
plt.axvline(x=result.output["saturation_index"], color='r', linestyle='--', label='Saturation Index')
8
plt.xlabel('Voltages (Indices)')
9
plt.ylabel('Current (a.u.)')
10
plt.legend()
11
plt.show()
