Live Plotting

Visualize your data in real-time as routines execute. Stanza supports two plotting backends to fit different workflows - whether you’re working in a Jupyter notebook, running scripts from the command line, or running routines in your IDE.

Quick Start with CLI

Enable live plotting in your notebook or script with a single command:

$
# Plots in browser (default) - opens at http://localhost:5006
>
stanza live-plot enable
>
>
# Plots in notebook cells (requires: pip install "cq-stanza[notebooks]")
>
stanza live-plot enable --backend inline

Once enabled, the DataLogger automatically detects the configuration and streams data to plots as your routines run.

Python API

You can also enable live plotting programmatically for more control over the plotting backend and configuration.

Server Backend

Opens plots in a browser window - works in any environment including remote servers:

1
from stanza.plotter import enable_live_plotting
2
3
# Enable live plotting with browser backend
4
backend = enable_live_plotting(runner.context.resources.logger, backend="server", port=5006)
5
6
# Run your routine - plots update live at http://localhost:5006
7
result = runner.run("sweep_barrier")

The server backend is ideal for:

• Remote development environments
• Long-running experiments you want to monitor from another machine
• Situations where you want plots separate from your notebook

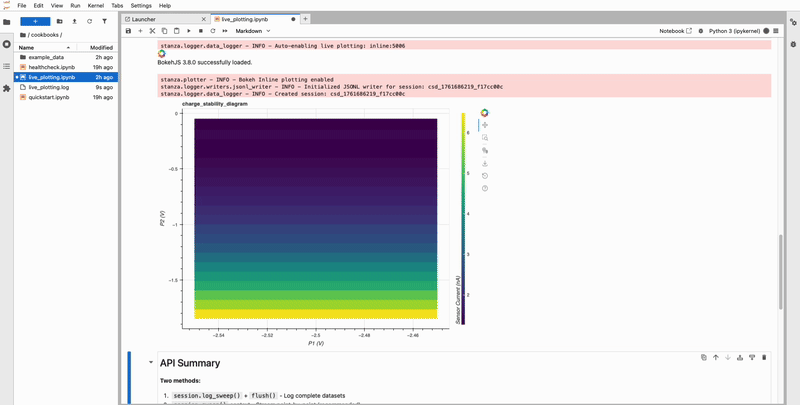

Inline Backend

Displays plots directly in notebook cells - requires jupyter_bokeh (pip install “cq-stanza[notebooks]”):

1
from stanza.plotter import enable_live_plotting
2
3
# Enable inline plotting
4
backend = enable_live_plotting(runner.context.resources.logger, backend="inline")
5
6
# Run your routine - plots appear and update in the notebook cell
7
result = runner.run("sweep_barrier")

The inline backend is ideal for:

• Interactive notebook workflows
• Quick data exploration
• When you want plots embedded alongside your code

Installation Requirements

The server backend works out of the box with Stanza. For inline plotting in Jupyter notebooks, install the additional dependency:

$
pip install "cq-stanza[notebooks]"

Plot Types

Stanza automatically chooses the appropriate plot type based on your data:

1D Line Plots: Used for single-parameter sweeps like barrier gate pinchoffs or plunger gate sweeps. The x-axis shows the swept voltage, and the y-axis shows the measured signal (typically current).

2D Heatmaps: Used for two-parameter sweeps like charge stability diagrams. Both axes show swept voltages, and the color represents the measured signal intensity.

Plots update in real-time as data is logged, allowing you to monitor your measurements as they run and make decisions about whether to continue or adjust parameters.

Complete Example

Here’s a complete workflow using live plotting with a barrier sweep:

1
from stanza.logger import DataLogger
2
from stanza.routines import RoutineRunner
3
from stanza.utils import load_device_config
4
from stanza.plotter import enable_live_plotting
5
6
# Load configuration
7
config = load_device_config("device.yaml")
8
9
# Create logger
10
logger = DataLogger(
11
    name="logger",
12
    routine_name="characterization",
13
    base_dir="./data",
14
    formats=["hdf5", "jsonl"]
15
)
16
17
# Create runner
18
runner = RoutineRunner(configs=[config], logger=logger)
19
20
# Enable live plotting (browser backend)
21
backend = enable_live_plotting(logger, backend="server", port=5006)
22
23
# Run routine - watch plots update at http://localhost:5006
24
result = runner.run("sweep_barrier", gate="G1", v_start=-2.0, v_stop=0.0, n_points=100)

Disabling Live Plotting

To disable live plotting:

$
stanza live-plot disable

Or programmatically:

1
from stanza.plotter import disable_live_plotting
2
3
disable_live_plotting(runner.context.resources.logger)

Tips and Best Practices

Use server backend for remote work: If you’re SSH’d into a lab computer, the server backend lets you view plots in your local browser by port forwarding:

$
ssh -L 5006:localhost:5006 user@lab-computer

Monitor long measurements: Live plotting is especially useful for long 2D sweeps where you want to see data quality before the entire measurement completes.

Adjust plot refresh rate: For very fast measurements, you may want to reduce plot update frequency to avoid performance overhead. This can be configured through the plotting backend initialization.

Check data quality early: Live plots let you catch issues like noise, drift, or saturation early in your measurement, saving time by allowing you to stop and adjust parameters if needed.
